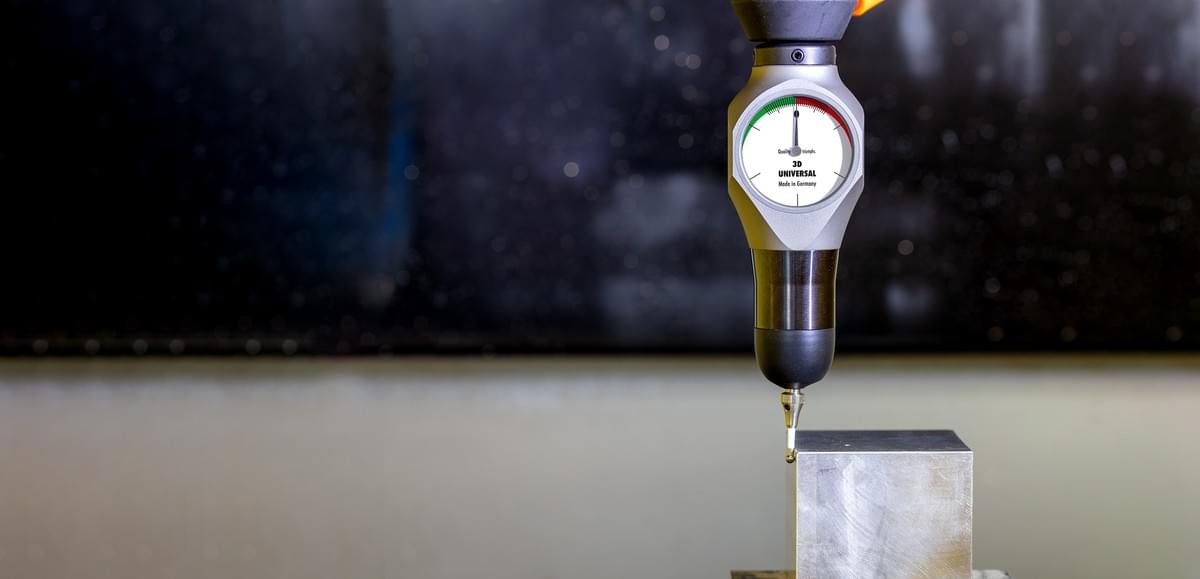

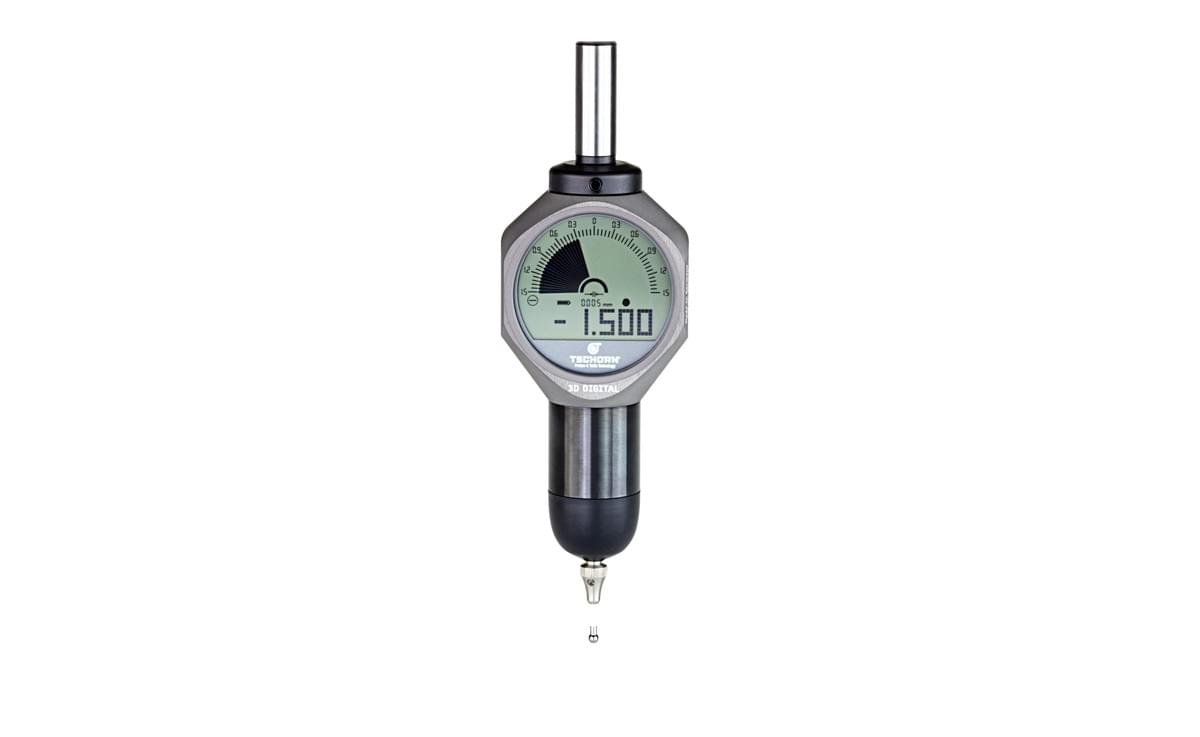

• Tschorn 3D Tester

    德國雷神牌3D探測頭

    The best chosen for calibration and probing.

    原點校正及尋邊的最佳選擇.

    broken image

    Slimplus 3D Tester(V2)

    Feature

    ●Attractive

    ●Slim
    ●Precise

    ●Robust

    ●Economical

    Application

    If features a sleek and attractive design. Its precision and versatility allow quick and easy determination of workpiece zero points and lengths. The probing can be performed in all axis directions (X/Y/Z) with identical resolution. AS soon as the pointer shows ”0”, the spindle axis stands precisely on the workpiece edge. The protection of the measuring unit is of topmost priority. For this purpose, large travel paths, limited by mechanical stops, have been integrated into the probing unit. The probing unit tip has a breaking point that is mounted near the top. If your 3D probes are damaged by the effect of an external force, a simple repair is economically possible.



    德國雷神牌3D 探測頭 (V2)

    特徵

    ●質感

    ●精巧、輕量化

    ●精確

    ●堅實

    ●高性價比

    應用

    Tschorn 3D探測頭具有簡約、輕巧設計。其高精密度與多用途性,可快速拆裝,並且判讀工作原點與座標。各軸向(X/Y/Z)可共用一支探針,找尋水平與垂直方向之工作座標。當兩指針(長/短)均指出「0」時,即表示主軸中心線與工件量測邊對齊。安裝在3D探測頭的探針,若受到外力破壞,則探針會從斷裂點破裂,以保護3D探測頭本體,更換探針即可重新使用。

    broken image

    Zero setter mech. Micro

    Application

    To determine the position of workpiece surfaces or tool lengths in Z-direction at milling machines or lathes.

    The zero setter is placed on the workpiece. The spindle has to be moved carefully onto the tracer until the dial gauge indicators ” 0”.

    The reference dimension 100 mm to the workpiece has been reached.

    A safety spring range of max. 2mm is included.



    小刀徑機械式Z軸定位器

    應用

    用以判定銑床或車床Z軸上,加工件的位置或刀具長度。

    小刀徑機械式Z軸定位器置於床台上。

    必須細心地將主軸移至量測平面上,直到量表指示為0時,已達到參考尺寸100mm。彈性安全作用範圍為2mm包括在50mm。

    broken image

    Zero setter TURNING 60 mm​

    Feature

    Zero setter with serial number and inspection certificate.

    Application

    To determine the position of workpiece or tool lengths within z-direction at milling machines or turning lathes. The zero setter is placed on the workpiece. The spindle has to be moved carefully to the tracer. The LED-signal indicates that the reference dimension 60 mm has been reached. A safety spring range of 2 mm is included. For horizontal applications, the magnetic version is available.



    光學式Z軸定位器 ( 60 mm )

    特徵

    整組內含印有序號之光學式Z軸定位器與檢驗證書。

    應用

    用以判定銑床或車床 Z軸中,加工件的位置或刀具長度。光學式Z軸定位器於加工件上。必須很細心地將主軸移至量測平面上。LED信號燈閃爍時,指示出已達到參考尺寸60 mm。彈性安全作用範圍為2 mm包括在60 mm。至於水平應用,可選用附磁性座之光學式Z軸定位器。

    broken image

    TSCHONR 4.0

    Application

    Setting up and measuring workpieces and tools on processing machines.



    3D edge finder 4.0

    ●Probing and measuring of your workpieces

    ●Radio signal connection

    ●Probing accuracy +/- 0.003 mm

    ●Fully automatic, directly on your machine



    Zero setter 4.0

    ●Probing and measuring of tool lengths

    ●Radio signal connection

    ●Probing accuracy +/- 0.003 mm

    ●Fully automatic, directly on your machine



    Receiver 4.0

    green = activated

    ●blue = connected

    ●red = probing signal



    無線刀具設定及工件量測系統

    應用

    用以原點歸零、工件量測、刀具歸零與刀長補正等CNC數控工具機在線作業。



     無線光學式3D高精度尋邊器4.0

    ●原點歸零及工件量測

    ●無線電波訊號連結

    ●量測精度為+/-0.003mm

    ●全自動控制,可安裝在各類型CNC數控工具機



    無線高精度對刀儀4.0

    ●刀具歸零及刀長補正

    ●無線電波訊號連結

    ●量測精度為+/-0.003mm

    ●全自動控制,可安裝在各類型CNC數控工具機



    無線接收器4.0

    ●綠色燈號:待機中

    ●藍色燈號:連線中

    ●紅色燈號:量測中

    broken image

    3D-Precision probe

    Feature

    ●Within all 3 axis, the accuracy of probing is smaller than 0.005 mm.

    ●3D-precision probe with inspection certificate in suitcase.

    ●Protection against humidity is essential for the edge finder due to the built-in electronical components.

    Application

    This newly developed 3D-Precision probe is a highly precise measuring device. Highest measurement results could be reached with 3-dimensional probing on CNC-machines.



    光學式3D高精度尋邊器

    特徵

    ●3軸向內的量測精度均小於 0.005 mm。

    ●整組內含印有序號之光學式3D高精度尋邊器及檢驗證書。

    ●由於內建電子元件的關係,光學式3D高精度尋邊器必須慎防濕氣。

    應用

    全新開發的光學式 3D 高精度尋邊器。用於CNC機床以3D量測方式達到最佳的測量結果。

    broken image

    Edge-finder mechanical

    Feature

    ●The approach reference surfaces or edges with a repeatability of 0.005mm.

    ●Be classified in Standard Type and Non-Magnetic Type. Hard chrome-plated tracer of Non-Magnetic Type is made from non-magnetic stainless steel.

    Operating

    ●The edge finder body can be slipt out from the axis centre by a gentle tip of the finger.

    ●By slowly and carefully approaching the rotating edge finder (Ca.500 rpm / min.) to the respective reference surface, the oscillation movement steadies successively.

    ●When reaching the final position the edge finder body passes along the edge. The position now corresponds to the radius of the tracer.



    偏心式尋邊器

    特徵

    ●端面與邊緣的重複定位精度達到0.005mm.

    ●區分為標準型與不導磁型;不導磁尋邊器的鍍硬鉻測定棒是由不鏽鋼製成。

    操作方式

    ●請用手指腹輕觸測定棒的邊緣,使其滑動偏離同心。

    ●緩慢細心地移動旋轉中的偏心式尋邊器(約500rpm/min.),逐步接近並輕觸工件的端面,當越接近同心時,尋邊器的擺動轉至穩定靜止的狀態,表示已在同心。

    ●沿著工件的邊緣移動偏心式尋邊器,找尋到最終參考位置。這最終參考位置反應測定棒的半徑。因此,工件基準面之座標位置,就是座標讀取數值,加上測定棒半徑(例如:Ø10÷2= Ø5)。

    broken image

    Edge finder optical 3D

    Feature

    ●If a conductive workpiece and the springed tracer touch, the electrical circuit is getting closed and a LED signal appears. Thus with a distance of 5 mm (= tracer radius Ø10) the workpiece‘s edge is reached.

    ●Edge finder with serial-no. and inspection certificate.
    ●Protection against humidity is essential for the edge finder due to the built-in electronical components.

    Application

    For accurate zero point determination and bore centers to the spindle with an accuracy of probing smaller than 0.010 mm.



    光學式3D尋邊器

    特徵

    ●如果導電性加工件在X、Y或Z軸向,碰觸到探測珠,電路會閉合而 LED 會出現指示燈號閃爍。此時工件基準面之座標位置,就是座標讀取數值,加上探測珠半徑5mm(例如:Ø10÷2= Ø5)。

    ●整組內含印有序號之光學式 3D 尋邊器與檢驗證書。

    ●因為內建電子元件的關係,光學式 3D 尋邊器必須慎防濕氣。

    應用: 以探測精度小於 0.010mm之探針精確判定零點及軸孔中心位置。

    broken image

    Edge finder optical 2D

    Feature

    ●If a conductive workpiece and the springed tracer touch, the electrical circuit is getting closed and a LED signal appears. Thus with a distance of 5mm (= tracer radius Ø10) the workpiece‘s edge is reached.

    ●Edge finder with serial-no. and inspection certificate.

    ●Protection against humidity is essential for the edge finder due to the builtin electronical components.

    Application

    For accurate zero point determination and bore centers to the spindle with an accuracy of probing smaller than 0.010 mm.



    光學式2D尋邊器

    特徵

    ●如果導電性加工件在X、Y軸向碰觸到圓型探測珠,電路會閉合而 LED 會出現指示燈號閃爍。此時工件基準面之座標位置,就是座標讀取數值,加上探測珠半徑5mm(例如:Ø10÷2= Ø5)。

    ●印有序號之光學式 2D 尋邊器與檢驗證書。

    ●因為內建電子元件的關係,光學式 2D 尋邊器必須慎防濕氣。

    應用

    以探測精度小於 0.010mm之探針精確判定零點及軸孔中心位置。

    broken image

    Edge finder acoustic 2D & 3D

    Feature

    ●Like the optical edge finders with an additional acoustic signal.

    ●Edge finder with serial-no. and inspection certificate.

    ●Protection against humidity is essential for the edge finder due to the built-in electronical components.



    光學式2D、3D蜂鳴尋邊器

    特徵

    ●與光學式尋邊器相同,但增加蜂鳴信號。

    ●印有序號之光學式 2D、3D蜂鳴尋邊器與檢驗證書。

    ●因為內建電子元件的關係,光學式 2D、3D蜂鳴尋邊器必須慎防濕氣。
